Convert Revit Projects to Database with Drawings & Specifications using DDC

Turn a .rvt project into open, analysis-ready data (XLSX + optional DAE/PDF) using the RvtExporter.exe from the DDC Revit toolkit. This n8n template provides a Form UI to set paths and flags, then runs the exporter with safe defaults.

Converts CAD/BIM files with customizable export modes (basic: 309 categories, standard: 724 categories, complete: all 1209 categories) and optional outputs like bounding box, Revit schedules, or PDF drawings.

What it does

• Launches RvtExporter.exe with your chosen Revit file and export mode
• Optional feature flags: bbox, schedule, sheets2pdf, -no-xlsx, -no-collada
• (Optional) Output folder auto-generates *_rvt.xlsx and *_rvt.dae names

Prerequisites

• Windows host (the exporter is a Windows executable)
• DDC Revit toolkit installed (path like: C:\\DDC_Converter_Revit\\datadrivenlibs\\RvtExporter.exe)
• A local .rvt file you can read

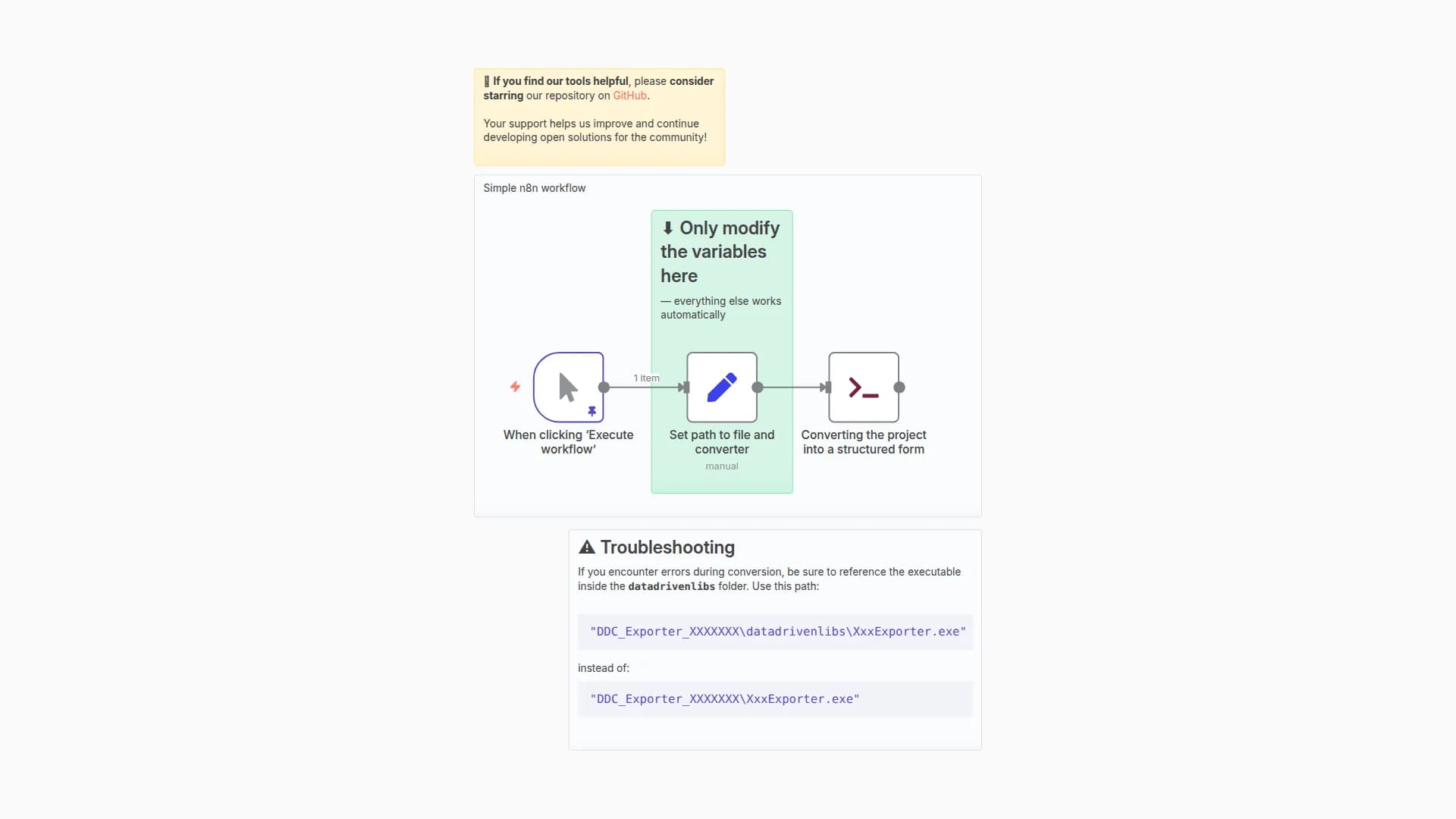

How to use

1. Import this json workflow into n8n.
2. Open the Form UI trigger (ensure pop-ups are allowed).
3. Fill in:
   • Path to Revit Converter: C:\\DDC_Converter_Revit\\datadrivenlibs\\RvtExporter.exe
   • Revit File Path: e.g. C:\\Sample_Projects\\your_project.rvt
   • Export Mode: basic | standard | complete | custom
   • Conversion Options: multi-select flags (optional)
   • (optional) output_folder: e.g. C:\\DDC_Output
4. Click Submit → the workflow runs Run Revit Exporter.

Consulting and Training

We work with leading construction, engineering, consulting agencies and technology firms around the world to help them implement open data principles, automate CAD/BIM processing and build robust ETL pipelines.

If you would like to test this solution with your own data, or are interested in adapting the workflow to real project tasks, feel free to contact us.
