Google Maps Phone Scraper via Bright Data API with Google Sheets Sync

Overview

This n8n workflow automates the process of scraping business phone numbers and information from Google Maps using the Bright Data API and saves the results to Google Sheets.

Workflow Components

1. Form Trigger - Submit Location and Keywords

Type: Form Trigger
Purpose: Start the workflow when a form is submitted
Fields:

• Location (required)
• Keywords (required)

Configuration:

• Form Title: "GMB"
• Webhook ID: 8b72dcdf-25a1-4b63-bb44-f918f7095d5d

2. Bright Data API - Request Business Data

Type: HTTP Request
Purpose: Sends scraping request to Bright Data API
Method: POST
URL: https://api.brightdata.com/datasets/v3/trigger

Query Parameters:

• dataset_id: gd_m8ebnr0q2qlklc02fz
• include_errors: true
• type: discover_new
• discover_by: location
• limit_per_input: 2

Headers:

• Authorization: Bearer BRIGHT_DATA_API_KEY

Request Body:

{
  "input": [
    {
      "country": "{{ $json.Location }}",
      "keyword": "{{ $json.keywords }}",
      "lat": ""
    }
  ],
  "custom_output_fields": [
    "url",
    "country",
    "name",
    "address",
    "description",
    "open_hours",
    "reviews_count",
    "rating",
    "reviews",
    "services_provided",
    "open_website",
    "phone_number",
    "permanently_closed",
    "photos_and_videos",
    "people_also_search"
  ]
}

3. Check Scraping Status

Type: HTTP Request
Purpose: Check if data scraping is completed
Method: GET
URL: https://api.brightdata.com/datasets/v3/progress/{{ $json.snapshot_id }}

Query Parameters:

• format: json

Headers:

• Authorization: Bearer BRIGHT_DATA_API_KEY

4. Check If Status Ready

Type: Conditional (IF)
Purpose: Determine if scraping is ready or needs to wait
Condition: {{ $json.status }} equals "ready"

5. Wait Before Retry

Type: Wait
Purpose: Pause 1 minute before checking status again
Duration: 1 minute
Webhook ID: 7047efad-de41-4608-b95c-d3e0203ef620

6. Check Records Exist

Type: Conditional (IF)
Purpose: Proceed only if business records are found
Condition: {{ $json.records }} not equals 0

7. Fetch Business Data

Type: HTTP Request
Purpose: Get business information including phone numbers
Method: GET
URL: https://api.brightdata.com/datasets/v3/snapshot/{{ $json.snapshot_id }}

Query Parameters:

• format: json

Headers:

• Authorization: Bearer BRIGHT_DATA_API_KEY

8. Save to Google Sheets

Type: Google Sheets
Purpose: Store business data in Google Sheets
Operation: Append
Document ID: YOUR_GOOGLE_SHEET_ID
Sheet Name: GMB

Column Mapping:

• Name: {{ $json.name }}
• Address: {{ $json.address }}
• Rating: {{ $json.rating }}
• Phone Number: {{ $json.phone_number }}
• URL: {{ $json.url }}

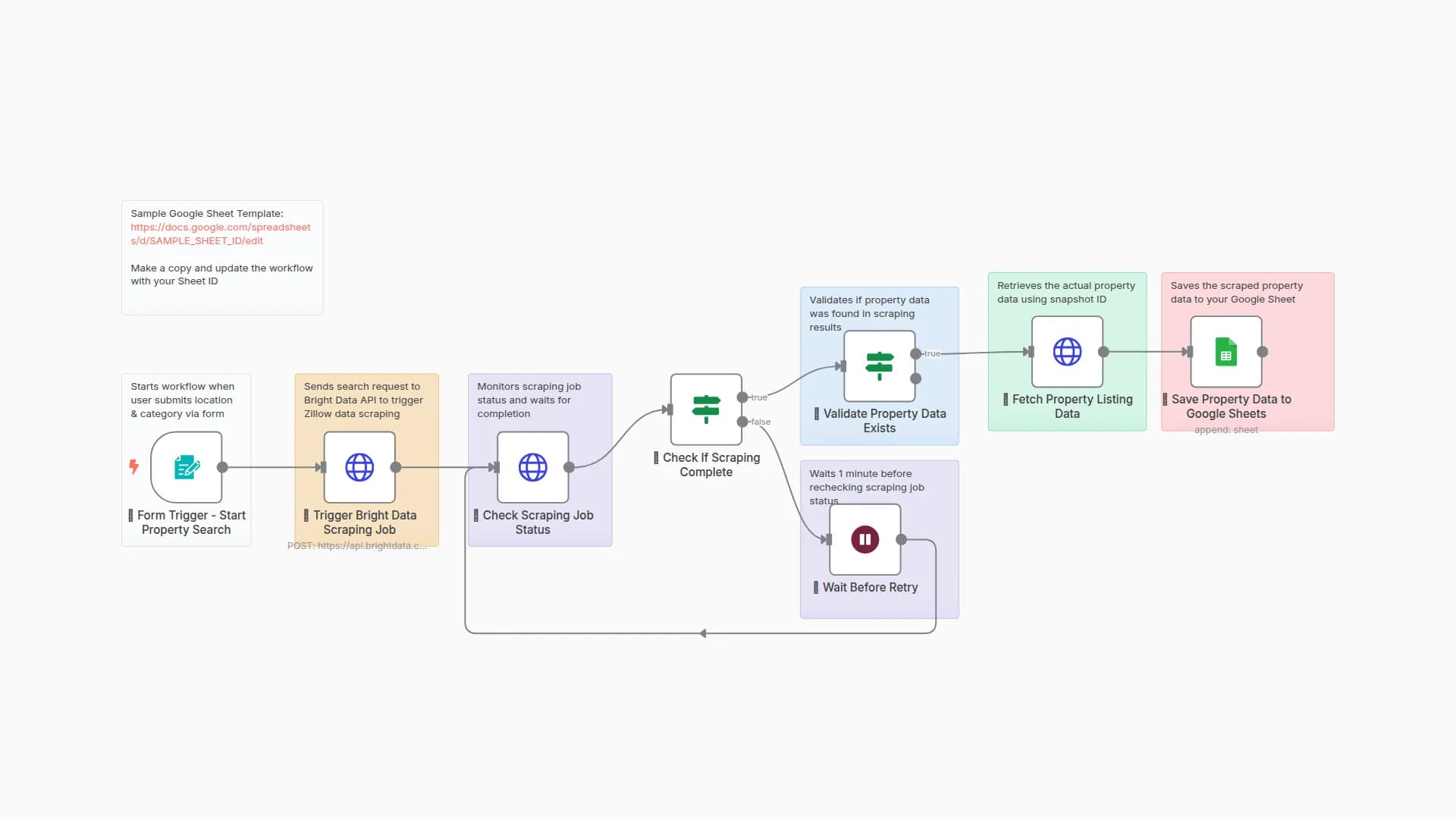

Workflow Flow

1. Start: User submits form with location and keywords
2. Request: Send scraping request to Bright Data API
3. Monitor: Check scraping status periodically
4. Wait Loop: If not ready, wait 1 minute and check again
5. Validate: Ensure records exist before proceeding
6. Fetch: Retrieve the scraped business data
7. Save: Store results in Google Sheets

Setup Requirements

API Keys & Credentials

• Bright Data API Key: Replace BRIGHT_DATA_API_KEY with your actual API key
• Google Sheets OAuth2: Configure with your Google Sheets credential ID
• Google Sheet ID: Replace YOUR_GOOGLE_SHEET_ID with your actual sheet ID

Google Sheets Setup

• Create a Google Sheet with a tab named "GMB"
• Ensure the following columns exist:
  • Name
  • Address
  • Rating
  • Phone Number
  • URL

Workflow Status

• Active: No (currently inactive)
• Execution Order: v1
• Version ID: 0bed9bf1-00a3-4eb6-bf7c-cf07bee006a2
• Workflow ID: Hm7iTSgpu2of6gz4

Notes

• The workflow includes a retry mechanism with 1-minute waits
• Data validation ensures only successful scrapes are processed
• All business information is automatically saved to Google Sheets
• The form trigger allows easy initiation of scraping jobs
